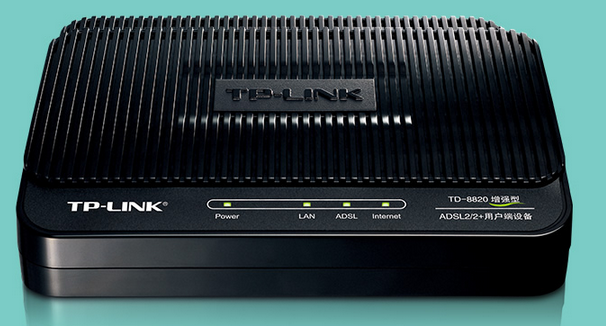

TD-8820增強型兼容ADSL/ADSL2/ADSL2+標準，提供bridge接入功能，支持路由、橋接功能，寬帶路由功能等。以下文檔是TD-8820增強型詳細配置指南，有需要的朋友可立即下載此文檔。
溫馨提示：
本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。
TD-8820增強型詳細配置指南目錄
第1章產品概述...........................................................................................................1
1.1產品簡介.........................................................................................................................1
1.2特性和規格說明...............................................................................................................1
1.1.1主要特性...............................................................................................................1
第2章硬件描述...........................................................................................................3
2.1面板布置.........................................................................................................................3
2.1.1前面板..................................................................................................................3
2.1.2后面板..................................................................................................................3
2.2復位................................................................................................................................4
2.3系統需求.........................................................................................................................4
2.4安裝環境.........................................................................................................................4
2.5硬件安裝.........................................................................................................................5
第3章系統配置...........................................................................................................6
3.1計算機設置......................................................................................................................6
3.2登錄...............................................................................................................................8
第4章配置指南.........................................................................................................10
4.1快速設置.......................................................................................................................10
4.2接口設置.......................................................................................................................12
4.2.1Internet...............................................................................................................12
4.2.2局域網................................................................................................................21
4.3高級設置.......................................................................................................................23
4.3.1攻擊防護.............................................................................................................23
4.3.2路由....................................................................................................................24
4.3.3NAT....................................................................................................................25
4.3.4QoS....................................................................................................................29
4.3.5VLAN.................................................................................................................32
4.3.6ADSL.................................................................................................................34
4.4接入管理.......................................................................................................................35
4.4.1ACL....................................................................................................................35
4.4.2過濾器................................................................................................................36
4.4.3SNMP................................................................................................................43
4.4.4UPnP.................................................................................................................43
4.4.5DDNS.................................................................................................................44
4.4.6CWMP................................................................................................................44
4.5維護..............................................................................................................................46
4.5.1密碼設置.............................................................................................................46
4.5.2時區....................................................................................................................46
4.5.3Firmware............................................................................................................47
4.5.4重啟系統.............................................................................................................47
4.5.5診斷....................................................................................................................48
4.6狀態..............................................................................................................................48
4.6.1設備信息.............................................................................................................48
4.6.2系統日志.............................................................................................................49
4.6.3統計....................................................................................................................50
4.7幫助..............................................................................................................................51
附錄AFAQ................................................................................................................52
附錄BIE瀏覽器設置..................................................................................................53
附錄C規格參數.........................................................................................................55
TD-8820增強型配置指南（部分內容預覽）
TD-8820增強型規格參數
協議標準
IEEE 802.3、IEEE 802.3u
ANSI T1.413、ITU G.992.1、ITU G.992.2、ITU G.992.3、ITU G.992.5
ADSL速率
下行：24Mbps（ADSL2+），8Mbps（ADSL）
上行：1Mbps
工作模式
RFC2364(PPPoA)
RFC2516(PPPoE)
RFC1483(EoA)(Router)
RFC1483 (EoA)(Bridge)
RFC1577(IPoA)
接口
1個10/100M自適應RJ45端口（Auto MDI/MDIX）
1個RJ11端口
按鈕
電源開關按鈕
Reset復位按鈕
LED
Power電源指示
LAN狀態指示
ADSL狀態指示
Internet狀態指示
尺寸
140mm x 92mm x 29mm（L x W x H）
電源
外置電源適配器輸出：5V DC 0.6A
