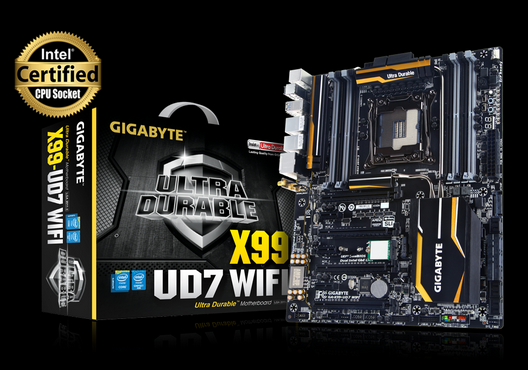

技嘉GA-X99-UD7 WIFI支持新一代Intel® Core™ i7 極致版處理器，使用業界領先的IR電源供應模塊控制器搭配PowIRstage™ 芯片，雙M.2接口支持固態硬盤與內建WIFI無線網卡。以下文檔是技嘉GA-X99-UD7 WIFI用戶手冊，為英文版本，有需要的朋友可立即下載此文檔。
溫馨提示：
本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。
技嘉GA-X99-UD7 WIFI用戶手冊目錄
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-X99-UD7 WIFI Motherboard Layout..........................................................................7
GA-X99-UD7 WIFI Motherboard Block Diagram.............................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 Product Specifications.................................................................................... 10
1-3 Installing the CPU and CPU Cooler ............................................................... 13
1-3-1 Installing the CPU...................................................................................................13
1-3-2 Installing the CPU Cooler .......................................................................................15
1-4 Installing the Memory..................................................................................... 16
1-4-1 4 Channel Memory Configuration...........................................................................16
1-4-2 Installing a Memory ................................................................................................17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Setting up AMD CrossFire?/NVIDIA? SLI? Configuration .............................. 19
1-7 Back Panel Connectors.................................................................................. 21
1-8 Installing the I/O Shield .................................................................................. 23
1-9 Onboard Buttons, Switches, and LEDs.......................................................... 24
1-10 Internal Connectors........................................................................................ 26
Chapter 2 BIOS Setup ..................................................................................................37
2-1 Startup Screen ............................................................................................... 38
2-2 The Main Menu .............................................................................................. 39
2-3 M.I.T. .............................................................................................................. 42
2-4 System Information ........................................................................................ 54
2-5 BIOS Features ............................................................................................... 55
2-6 Peripherals..................................................................................................... 58
2-7 Chipset........................................................................................................... 60
2-8 Power Management....................................................................................... 63
2-9 Save & Exit..................................................................................................... 65
Chapter 3 Configuring SATA Hard Drive(s)...................................................................67
3-1 Configuring SATA Controllers......................................................................... 67
3-2 Installing the SATA RAID/AHCI Driver and Operating System....................... 79
Chapter 4 Drivers Installation........................................................................................83
4-1 Chipset Drivers............................................................................................... 83
4-2 Application Software ...................................................................................... 84
4-3 Information ..................................................................................................... 84
Chapter 5 Unique Features...........................................................................................85
5-1 BIOS Update Utilities ..................................................................................... 85
5-1-1 Updating the BIOS with the Q-Flash Utility.............................................................85
5-1-2 Updating the BIOS with the @BIOS Utility .............................................................88
5-1-3 Using Q-Flash Plus.................................................................................................89
5-2 APP Center .................................................................................................... 90
5-2-1 EasyTune................................................................................................................91
5-2-2 System Information Viewer.....................................................................................92
5-2-3 EZ Setup.................................................................................................................93
5-2-4 Fast Boot ................................................................................................................96
5-2-5 Smart TimeLock......................................................................................................97
5-2-6 Smart Recovery 2...................................................................................................98
5-2-7 USB Blocker .........................................................................................................100
5-2-8 Ambient LED ........................................................................................................101
5-2-9 V-Tuner.................................................................................................................102
5-2-10 Smart Switch ........................................................................................................103
5-2-11 Cloud Station Server ............................................................................................104
Chapter 6 Appendix .................................................................................................... 111
6-1 Configuring Audio Input and Output..............................................................111
6-1-1 Configuring 2/4/5.1/7.1-Channel Audio................................................................. 111
6-1-2 Configuring S/PDIF Out........................................................................................113
6-1-3 Configuring Microphone Recording......................................................................114
6-1-4 Using the Sound Recorder ...................................................................................116
6-2 Troubleshooting............................................................................................ 117
6-2-1 Frequently Asked Questions ................................................................................117
6-2-2 Troubleshooting Procedure ..................................................................................118
6-3 Debug LED Codes ....................................................................................... 120
Regulatory Statements............................................................................................ 124
Contact Us .............................................................................................................. 128

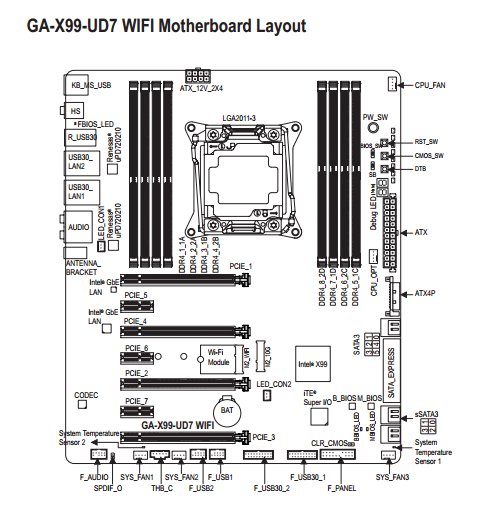

技嘉GA-X99-UD7 WIFI主板布局
技嘉GA-X99-UD7 WIFI規格參數
中央處理器(CPU)
支持LGA2011-3插槽處理器：Intel® Core™ i7處理器
L3高速緩存取決于CPU
芯片組
Intel® X99 高速芯片組
內存
8個DDR4 DIMM插槽，最高支持到64 GB
*由于Windows 32-bit操作系統的限制，若安裝超過4 GB的物理內存時，實際上顯示之內存容量將少于4 GB。
支持4信道內存技術
支持DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
支持non-ECC內存
支持Extreme Memory Profile (XMP)內存
支持RDIMM 1Rx8內存 (non-ECC模式運作）
音效
內建Realtek® ALC1150芯片
支持High Definition Audio
支持2/4/5.1/7.1聲道
支持S/PDIF輸出
網絡
內建2個Intel® GbE 網絡芯片(10/100/1000 Mbit)
